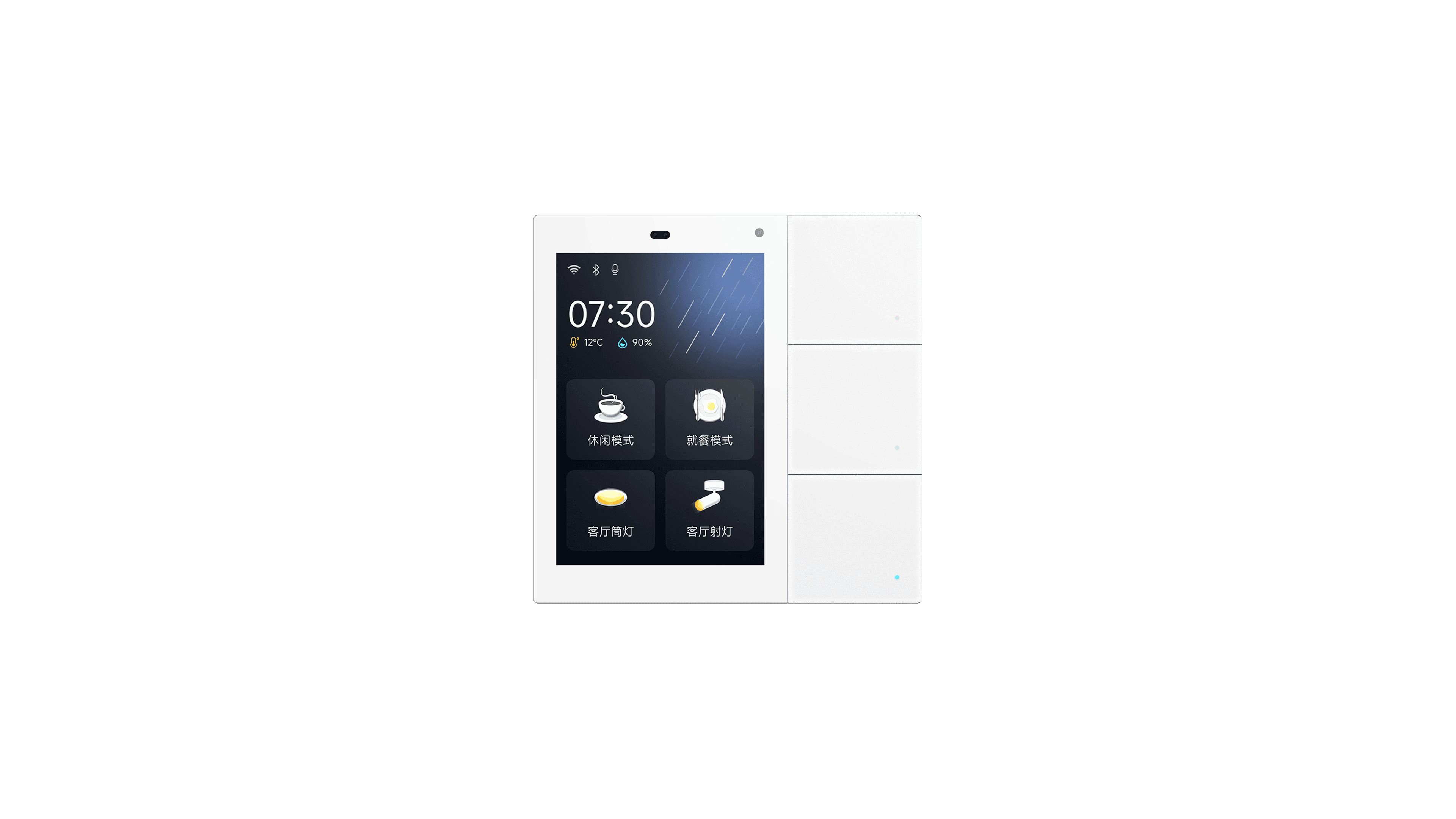

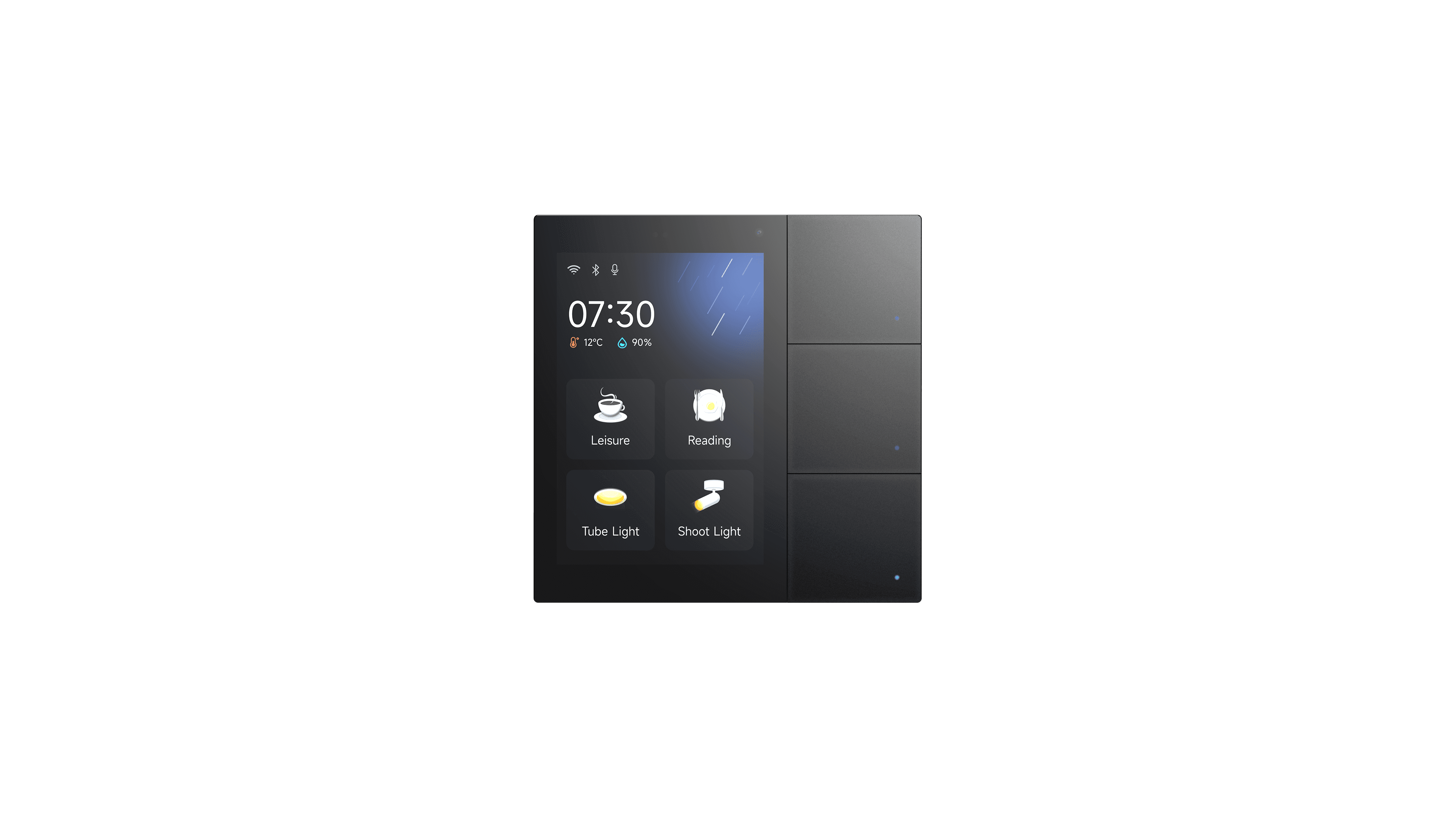

KNX Smart Touch S3 with Secure (KNX+Intercom+App Server)

Output in 0-10V or 10A/105uF. Max. DC current switching capacity 16A/30V DC, 230V AC drive and 24V AC with 0-10V drive interface; three-wire PT1000 temperature sensor Interface. KNX functions including fan coil control, scene control (8 folds), outputs can be used as switch ones. Installation: DIN-rail Mounted

Supports 24V AC or 230V AC thermal drive. 6 independent valve outputs, Max. 300mA/channnel. 6 channels of room temperature controller: support heating/cooling mode, integrating 2-point and PI control algorithm, with 5 scenes functions. Installation: DIN-rail Mounted

KNX-DALI-2 Gateway, 1/2-Fold is designed for KNX intelligent building control system and used to connect KNX bus and DALI bus. As the interface between KNX installation system and DALI network, messages from the KNX bus can be converted into information that can be identified by the DALI device via this gateway. The information contains the DALI device address and command, and send to the DALI network to control the DALI device, thus to realize the functions of switching, dimming, brightness value, colour temperature, colour control, etc. of various lamps etc. of various lamps with DALI ballasts, while the DALI gateway can request the status of the DALI device, failure detection, and convert the status and failure information into KNX telegrams, and send to the KNX bus.

KNX Secure Universal Interface with NTC, 4-Fold is mainly used in building control system. Via connection of KNX terminals, the device will be connected to the KNX BUS system to realize different functions in KNX system, and their functions are both simple to operate and intuitive, users can program it according to the requirement to implement the function systematically.the function systematically.

Input voltage 95V-255V AC, 50/60Hz, output 1: 30V DC +1/-2V, SELV with choke; output 2: 30V DC +1/- 2V,SELV without choke, total 640mA, short-circuit-protection. Current level indicator. The minimum distance betwee 2 power supply in a line is 300meter

The IP Router can be used as line or backbone coupler. It provides a data connection between the upper KNXnet/IP line (main line or backbone) and the lower TP KNX bus line (sub line). The basic functionality of the IP Router is to couple the Ethernet with one or more KNX-TP lines. The IP Router features a galvanic isolation between the Ethernet and the KNX-TP line(s). Due to its flexibility the IP Router can be used as a line coupler e.g. to connect several KNX TP lines via Ethernet. And it can be used as a backbone coupler to connect several TP areas or different TP installation systems via Ethernet. The device supports the KNX Secure protocol (KNXnet/IP Security).

RJ45 socket for10/100Base-T, IEEE 802.3 network, auto sensing, remote programming. Project management, support 4 local clients & 1 KNXnet/IP Device Manager.

KNX Multifunctional Gateway is a device that supports both remote control and LAN control. Users can easily utilize the "GVS Smart" app to control the gateway and its associated sub-devices, furthermore, the status of devices can be synchronized and displayed within the app. This gateway supports various device types, including KNX devices, RS485 devices, third-party TCP/IP protocol devices, and dry contact devices. Data configuration for the gateway can be done through the dedicated configuration app "GVS Smart Assistant" which allows for editing and writing configurations.

Switch relay 4 * 16A,21 * 6A; 1 folds AC/Dry contact shutter, 2 folds TRIAC dimming, 3 folds 0-10V dimming, 1 fold fan coil actuator with 0-10V output valve, 1 fold IP protocol, 5 folds of dry contact/binary input/LED output. 4 group event,4 logic functions, 4 time functions,Three-wires PT1000 temperature sensor interface.

Descriere în curs de adăugare pentru produsul KNX LED Dimming Actuator 4-Fold, 4A, 4SU MDRC.

Descriere în curs de adăugare pentru produsul KNX Universal Dimming Actuator with Secure 1-Fold, 2SU MDRC.

Descriere în curs de adăugare pentru produsul KNX Universal Dimming Actuator with Secure 2-Fold, 4SU MDRC.
