KNX Smart Touch S3

KNX Smart Touch S7 is a 6.9-inch KNX smart control panel with a screen resolution of up to 1440*720.In addition to integrating KNX device control, it also connects to a SIP intercom system, combining indoor and outdoor communication into one entity. The smart control integrates lighting, switches, dimming, curtains, value sender, color temperature, color control (RGB, RGBW, RGBCW),audio control,room temperature control, Air conditioner,Ventilation system control, etc. More details at: https://www.gvssmart.com/uploads/2025/02/251453144341.pdf

KNX Push Button Sensor with Display,1/2/3-gang integrates the basic control functions of Switch, Dimming, RGB/RGBW lighting, Colour temperature control, Blind, Scene, Value sender, Shift register, Multiple operation, Delay mode, and has a built-in temperature sensor to detect the local ambient temperature and supports RGB indication function.

5" IPS touch panel, resolution 480*854, aluminum faceplate, built-in temperature & proximity sensor, vertical/horizontal adjustable. Full KNX functions: 15 control pages including switch,dimming, shutter, scene control, value sending, RGB, RGBW,RGBCW,Color Temp. control, HVAC, AC,floor heating, ventilation, audio control, energy metering, air quality display. Max.16 timing , 8 group event, 8 logic functions, HCL funciton. Support icon customization by SD card. Installation: wall mounted, fits in 86*86mm, German 60mm, Swiss/Australian /US standard wall

4" IPS touch panel, resolution 480*480, aluminum faceplate, built-in temperature & proximity sensor. Full KNX functions: 9 control pages including switch, dimming, shutter, scene control, value sending, RGB, RGBW,RGBCW, Color Temp. control, HVAC, AC,floor heating, ventilation, audio control, energy metering, air quality display. Max.16 timing , 8 group event, 8 logic functions, icon customization by SD card. Installation: wall mounted, fits in 86*86mm, German 60mm, Swiss/Australian /US standard wall boxes.

The Multifunctional Actuator, 3-Fold, 6A, Flush Mounted (Referred to as Multifunctional actuator) is a module that integrates multiple relay output functions, including switch output, curtain output, fan output or valve output, in addition to dry contact input and LED output indication functions. The corresponding output function can be configured according to actual application requirements.

Multifunctional Actuator with Secure is a multi-output module, integrating multiple output functions, including switch output, curtain DC/AC output, fan output and valve output. You can configure the functions of the module according to your requirement, such as a part of the output for controlling the switch, a part of the output for controlling the curtain, and a part of the output for controlling the fan.

4 independent outputs, each with 1 changeover contact (UP/DOWN mechanically interlocked), Max. switching current 6A resistive, 370W Motor. Shutter/ Blind working mode, scene control (8 folds) Installation: DIN-rail Mounted

Switch Actuator with Secure is mainly applied in building control system, connected to the BUS via KNX terminals and installed together with other devices on the bus to become a system. These switch actuators can be used to control the switch loads, such as: Lighting, Heating control, Signal devices.

Switch Actuator with current detection(hereinafter referred to as switch actuator) is mainly applied in building control system, connected to the BUS via KNX terminals and installed together with other devices on the bus to become a system. These switch actuators can be used to control the switch loads, such as: Lighting, Heating control, Signal devices.

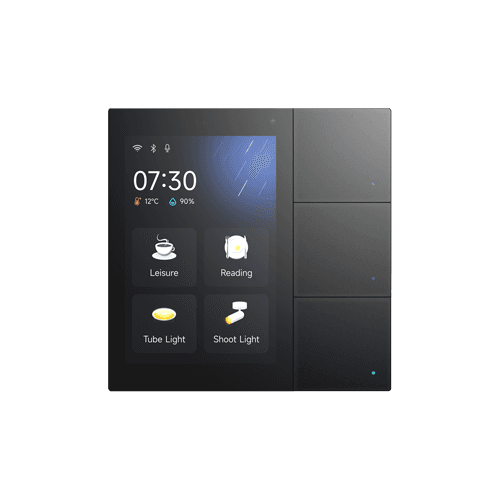

KNX Smart Touch with push button,3-gang not only supports screen touch operation, but also supports button operation, bringing a sense of dual experience while integrating functions such as Dimming, Curtain, Scene, Room temperature controller, Air conditioning, Ventilation system, Audio control, RGB and RGBW dimming, Colour temperature dimming, and Status display, and built-in temperature and humidity sensors to detect local environment temperature and humidity, meeting most daily applications.

Output in 0-10V or 10A/105uF. Max. DC current switching capacity 16A/30V DC, 230V AC drive and 24V AC with 0-10V drive interface; three-wire PT1000 temperature sensor Interface. KNX functions including fan coil control, scene control (8 folds), outputs can be used as switch ones. Installation: DIN-rail Mounted

Supports 24V AC or 230V AC thermal drive. 6 independent valve outputs, Max. 300mA/channnel. 6 channels of room temperature controller: support heating/cooling mode, integrating 2-point and PI control algorithm, with 5 scenes functions. Installation: DIN-rail Mounted
